PIG Storm Drain Filter | Adjustable Stainless Steel Frame | Inside the Drain Filter | for Storm Drains 24" - 37" W to 35" - 49" L | Rectangle | 12” Diameter | PMB30626
- REMOVES HYDROCARBONS: Filter strips float freely like tentacles to remove hydrocarbons as water moves through

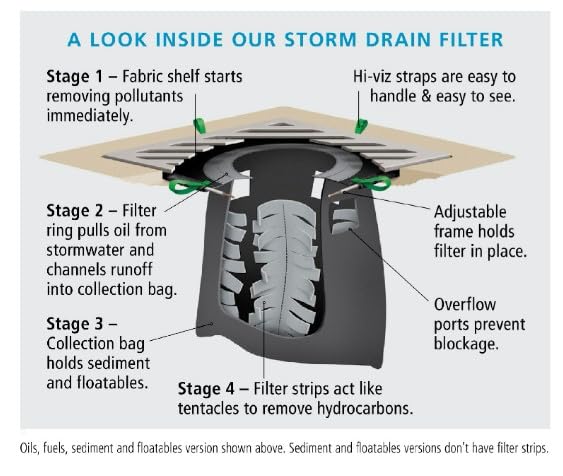

- FOUR-STAGE FILTRATION: Stormwater flows through drain grate onto fabric shelf (Stage 1), passes over filter ring (Stage 2) into collection bag (Stage 3) and over four sets of filter strips (Stage 4)
- MAXIMIZE POLLUTANTS CAPTURED: Polyester construction removes contaminants from stormwater at multiple stages and holds up to 2.08 gallons of oil and/or up to 75lbs. of sediment, debris, and trash
- STRENGTH AND SECURITY: Coated-Steel Adjustable Frame adds strength and secures filter in place, – even when grate is not installed – so you’ll never have to fish out a failed insert again
- PERFECTLY FITS YOUR SQUARE OR RECTANGULAR DRAIN: Witches Hat Drain Guard Frame easily adjusts by hand from 24" to 37" W x 35" to 49" L

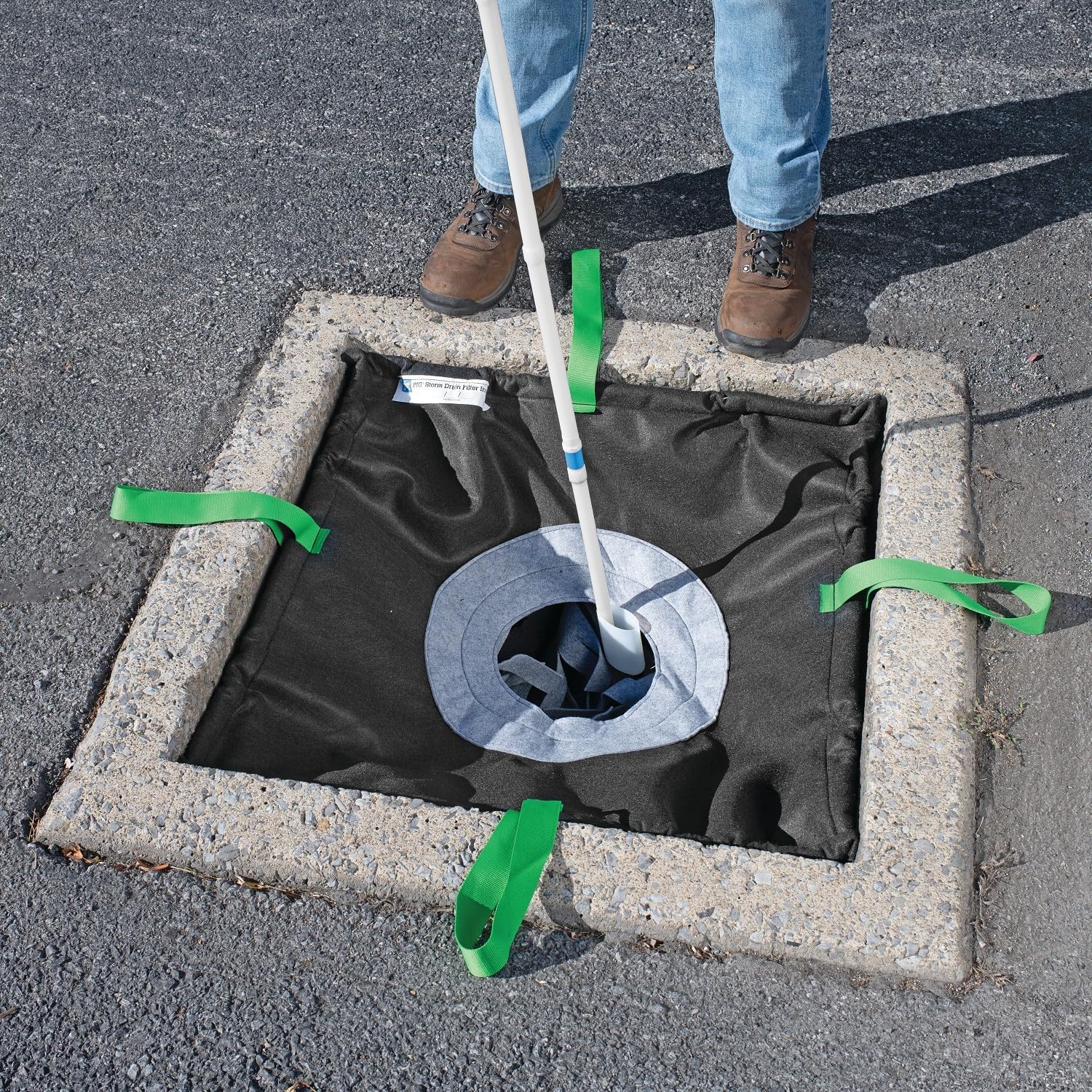

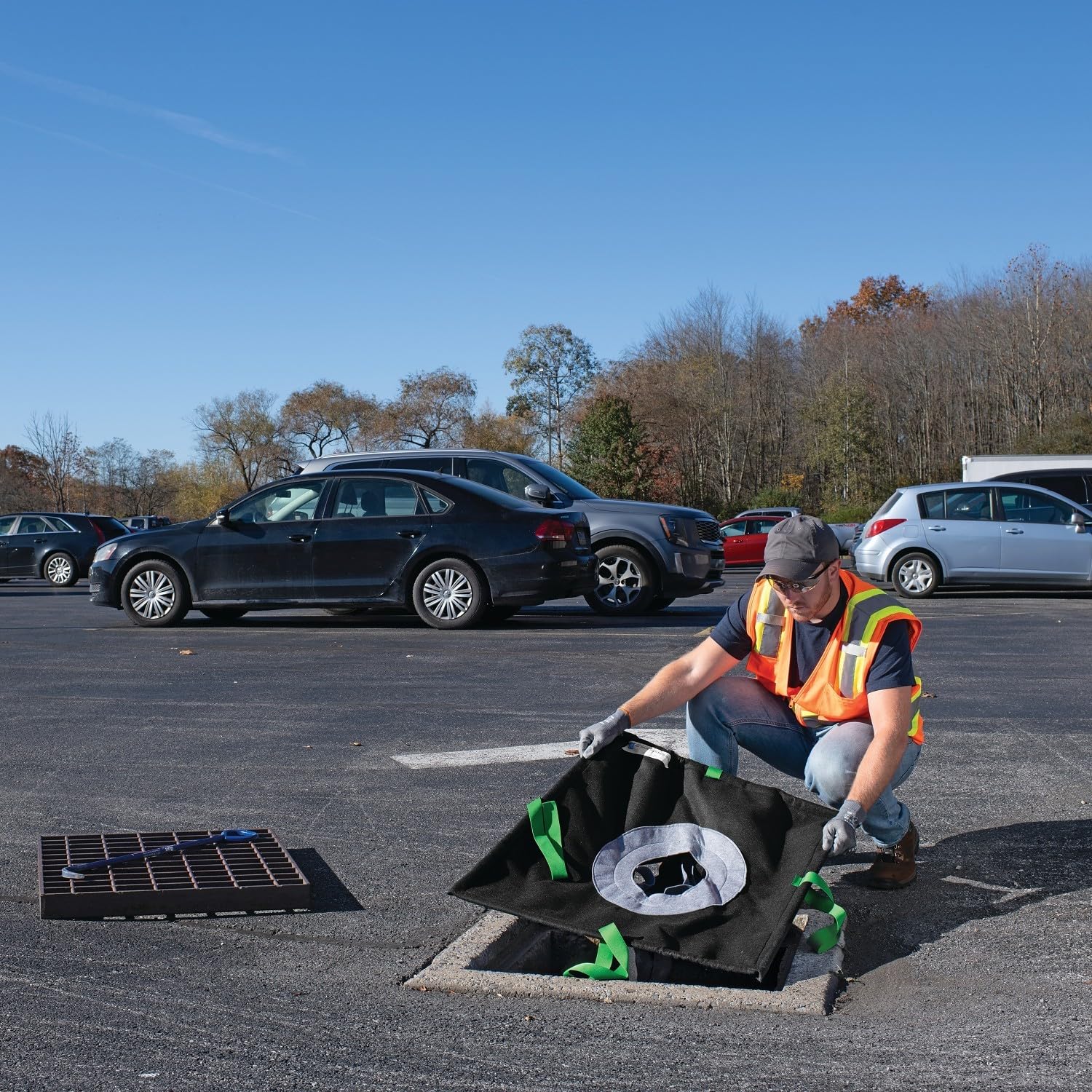

- EASY, ONE-PERSON JOB to install and remove debris: Just pull on the ends of the frame and expand filter to match your drain sizes and reduce your labor costs at the same time

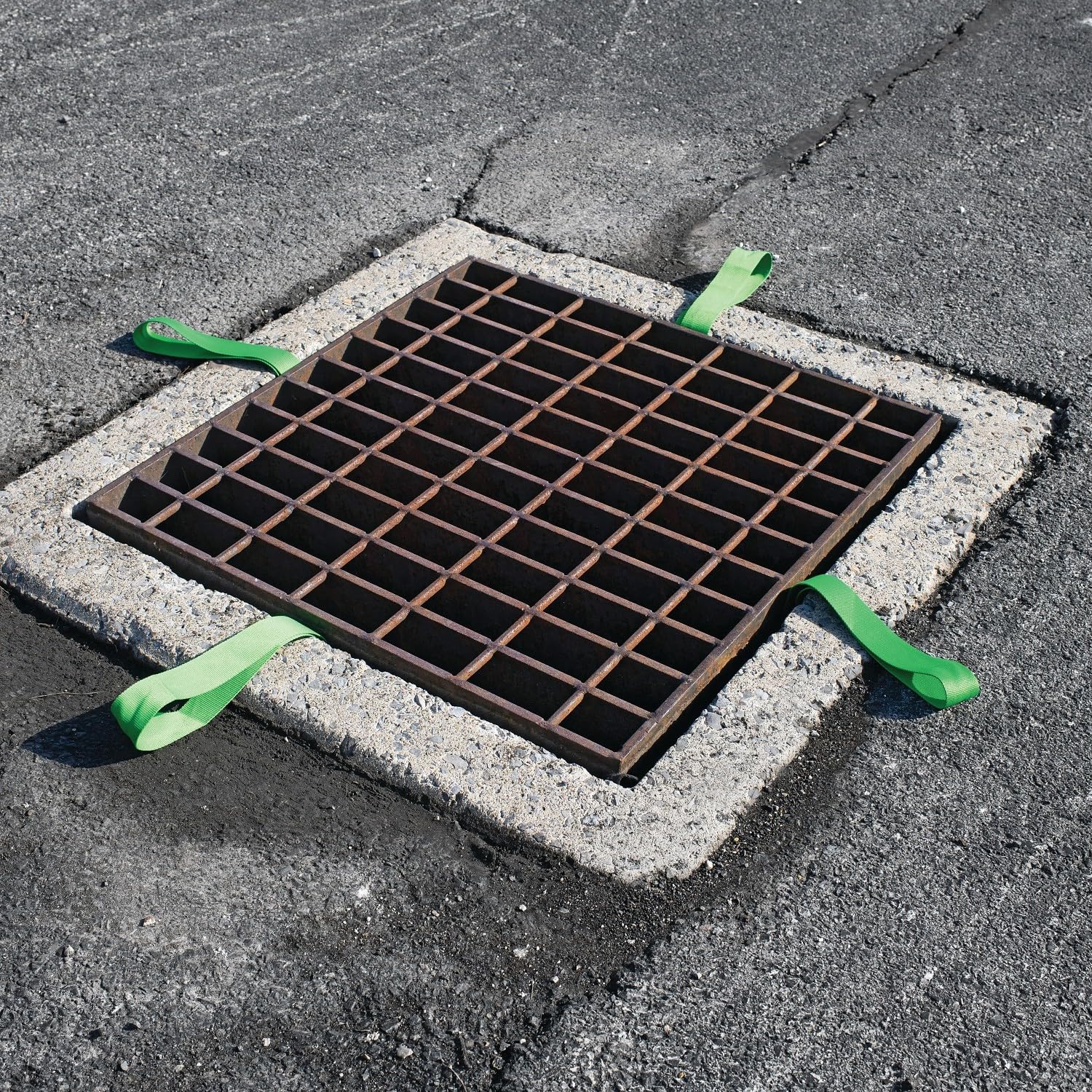

- HI-VIZ STRAPS: Helps inspectors see from a distance that you’re proactively managing your stormwater, and serves as a visual reminder for on-site maintenance
- ADJUSTABLE FRAME IS CUSTOMIZABLE to storm drains from 24" to 37" W x 35" to 49" L and OPENING DIAMETER is 12”
- OVERFLOW PORTS HELP MINIMIZE BACKED-UP WATER during high-flow storm events

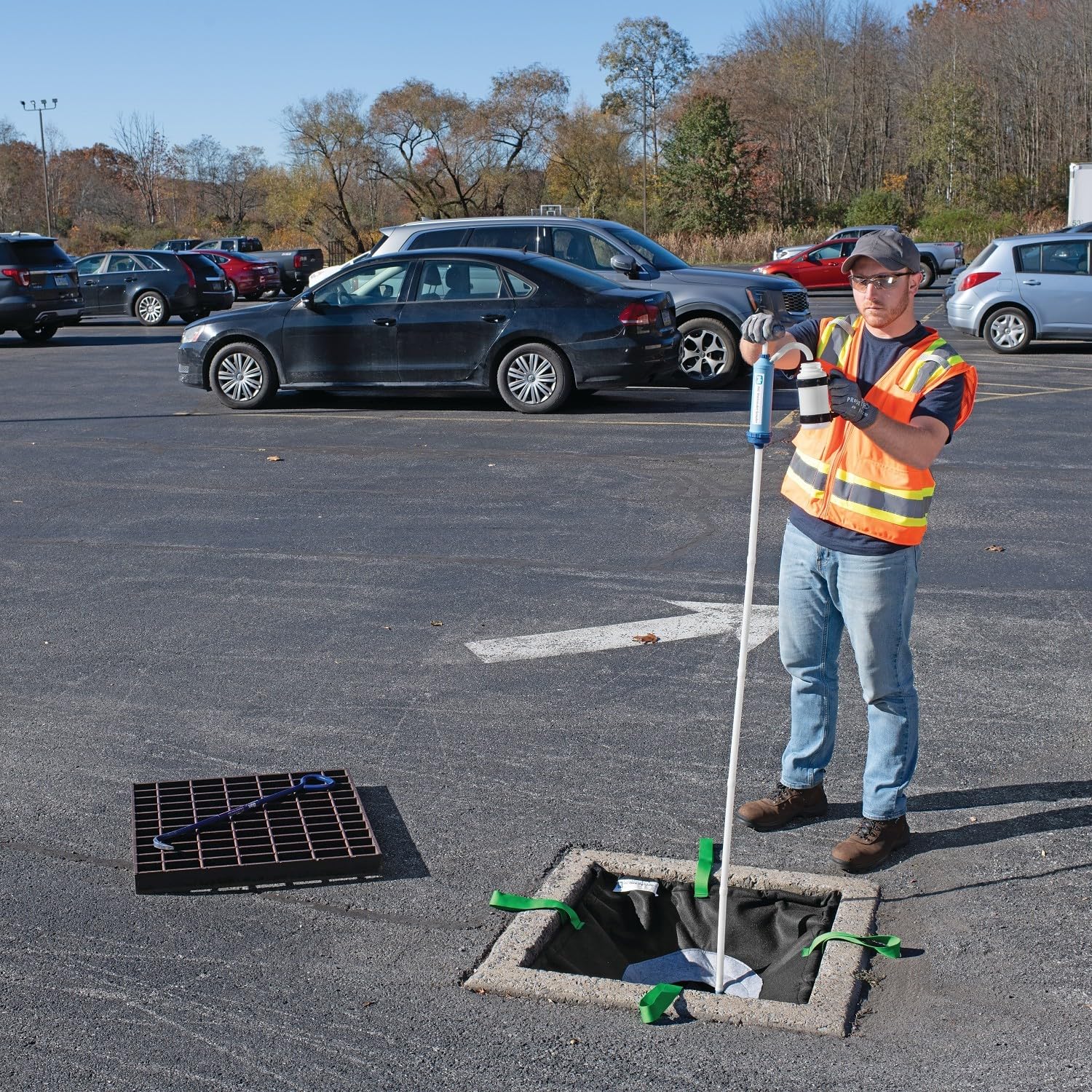

- PERFECT FOR PARKING LOTS and areas with vehicle traffic, frame stays inside the drain
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- REMOVES HYDROCARBONS: Filter strips float freely like tentacles to remove hydrocarbons as water moves through
- FOUR-STAGE FILTRATION: Stormwater flows through drain grate onto fabric shelf (Stage 1), passes over filter ring (Stage 2) into collection bag (Stage 3) and over four sets of filter strips (Stage 4)
- MAXIMIZE POLLUTANTS CAPTURED: Polyester construction removes contaminants from stormwater at multiple stages and holds up to 2.08 gallons of oil and/or up to 75lbs. of sediment, debris, and trash
- STRENGTH AND SECURITY: Coated-Steel Adjustable Frame adds strength and secures filter in place, – even when grate is not installed – so you’ll never have to fish out a failed insert again
- PERFECTLY FITS YOUR SQUARE OR RECTANGULAR DRAIN: Witches Hat Drain Guard Frame easily adjusts by hand from 24" to 37" W x 35" to 49" L
- EASY, ONE-PERSON JOB to install and remove debris: Just pull on the ends of the frame and expand filter to match your drain sizes and reduce your labor costs at the same time
- HI-VIZ STRAPS: Helps inspectors see from a distance that you’re proactively managing your stormwater, and serves as a visual reminder for on-site maintenance
- ADJUSTABLE FRAME IS CUSTOMIZABLE to storm drains from 24" to 37" W x 35" to 49" L and OPENING DIAMETER is 12”
- OVERFLOW PORTS HELP MINIMIZE BACKED-UP WATER during high-flow storm events
- PERFECT FOR PARKING LOTS and areas with vehicle traffic, frame stays inside the drain
